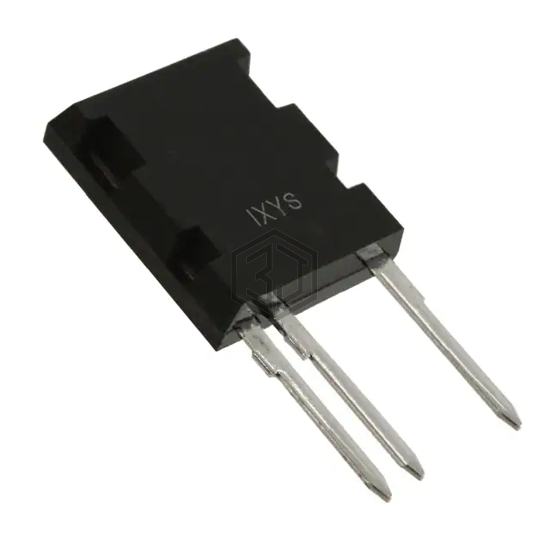

IGBT 4500V 90A 417W I5-PAK
IXYL60N450 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 4500V 90A 417W I5-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUSi5-Pak™, current - collector (ic) (max) 90 A.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 4500 V |
| Current - Collector (Ic) (Max) | 90 A |
| Current - Collector Pulsed (Icm) | 680 A |
| Vce(on) (Max) @ Vge, Ic | 3.3V @ 15V, 60A |
| Power - Max | 417 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 366 nC |
| Td (on/off) @ 25°C | 55ns/450ns |
| Test Condition | 960V, 60A, 4.7Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | ISOPLUSi5-Pak™ |
| Supplier Device Package | ISOPLUSi5-Pak™ |
Submit your RFQ for IXYL60N450 and get a quote within 24 hours.
