MOSFET N-CH 1700V 1A TO247HV

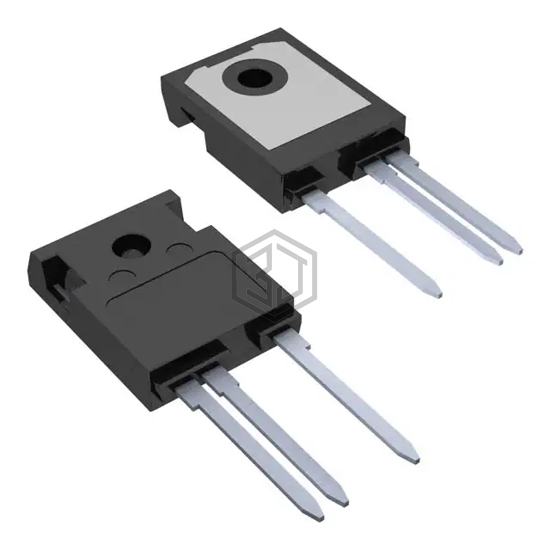

IXTH1N170DHV is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 1700V 1A TO247HV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1700 V |
| Current - Continuous Drain (Id) @ 25°C | 1A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 0V |
| Rds On (Max) @ Id, Vgs | 16Ohm @ 500mA, 0V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3090 pF @ 25 V |
| FET Feature | Depletion Mode |
| Power Dissipation (Max) | 290W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247HV |
| Package / Case | TO-247-3 Variant |
Submit your RFQ for IXTH1N170DHV and get a quote within 24 hours.
