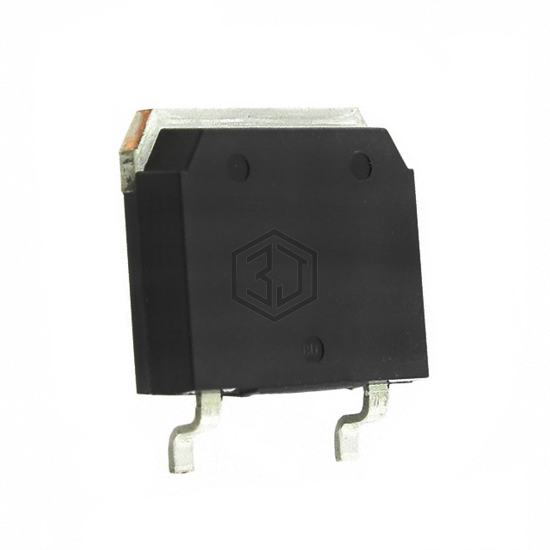

IGBT 600V 75A 540W TO268
IXGT72N60A3 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 600V 75A 540W TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 75 A.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 75 A |
| Current - Collector Pulsed (Icm) | 400 A |
| Vce(on) (Max) @ Vge, Ic | 1.35V @ 15V, 60A |
| Power - Max | 540 W |
| Switching Energy | 1.38mJ (on), 3.5mJ (off) |
| Input Type | Standard |
| Gate Charge | 230 nC |
| Td (on/off) @ 25°C | 31ns/320ns |
| Test Condition | 480V, 50A, 3Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268AA |
Submit your RFQ for IXGT72N60A3 and get a quote within 24 hours.
