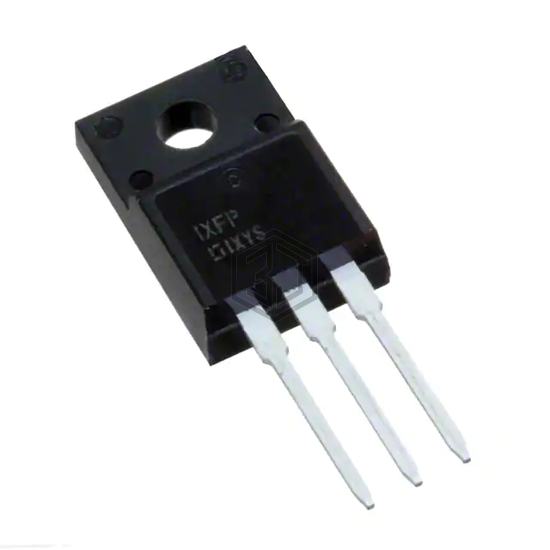

MOSFET N-CH 850V 3.5A TO220
IXFP4N85XM is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 850V 3.5A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 850 V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 247 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 35W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 Full Pack |
Submit your RFQ for IXFP4N85XM and get a quote within 24 hours.
