MOSFET N-CH 500V 68A SOT227B

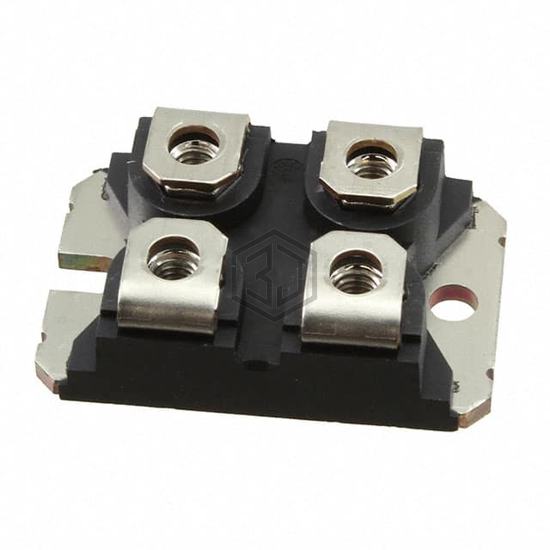

IXFN94N50P2 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 500V 68A SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 68A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 5V @ 8mA |
| Gate Charge (Qg) (Max) @ Vgs | 220 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 13700 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 780W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC |
Submit your RFQ for IXFN94N50P2 and get a quote within 24 hours.
