IXYS Integrated Circuits Division
GATE DRIVER HIGH/LOW SIDE 3.5A

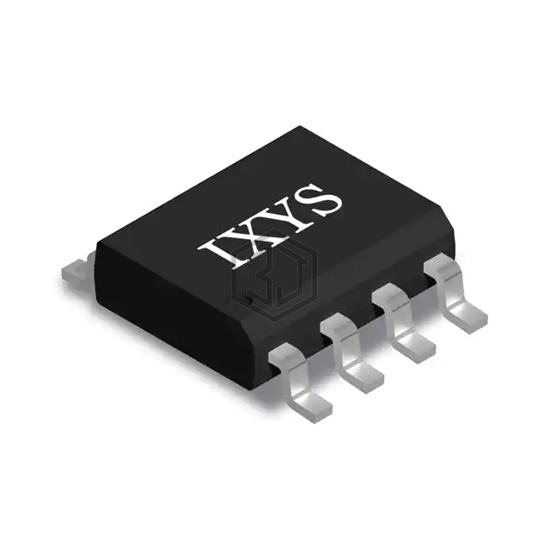

LF2190NTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HIGH/LOW SIDE 3.5A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 4,250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 4.5A, 4.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 25ns, 20ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN7390MX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 96% | View |
| FAD7191M1X | onsemi | IC GATE DRVR HI/LOW SIDE 14SOIC | 89% | View |
| MCP1403T-E/SO | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 84% | View |
| MCP1405-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 84% | View |
| TC4424AVMF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 81% | View |
| TC4423AVMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 81% | View |
Submit your RFQ for LF2190NTR and get a quote within 24 hours.
