IXYS Integrated Circuits Division
GATE DRIVER HALF BRIDGE 0.13A

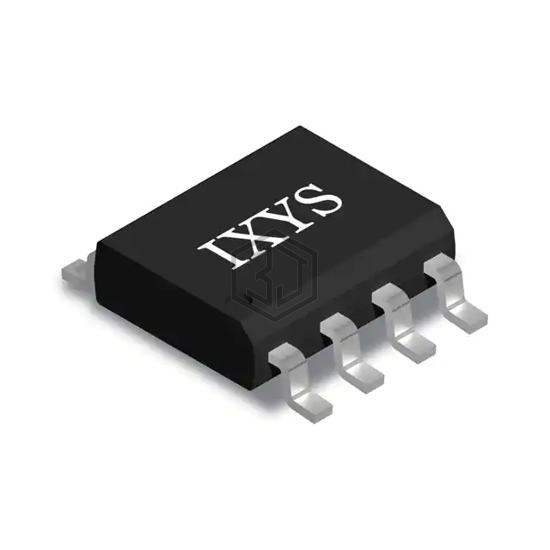

LF2104NTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HALF BRIDGE 0.13A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 2,153
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 290mA, 600mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 70ns, 35ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS2101STRPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
| L6398DTR | STMicroelectronics | IC GATE DRVR HALF-BRIDGE 8SO | 96% | View |
| IRS21084STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14SOIC | 96% | View |
| L6399D | STMicroelectronics | IC GATE DRVR HALF-BRIDGE 8SO | 96% | View |
| 2ED2101S06FXUMA1 | Infineon Technologies | LEVEL SHIFT SOI | 96% | View |
| LF2304NTR | IXYS Integrated Circuits Division | GATE DRIVER HALF BRIDGE 0.06A | 91% | View |
Submit your RFQ for LF2104NTR and get a quote within 24 hours.
