IXYS Integrated Circuits Division
OPTOISOLTR 5KV DARLINGTON 4-SMD

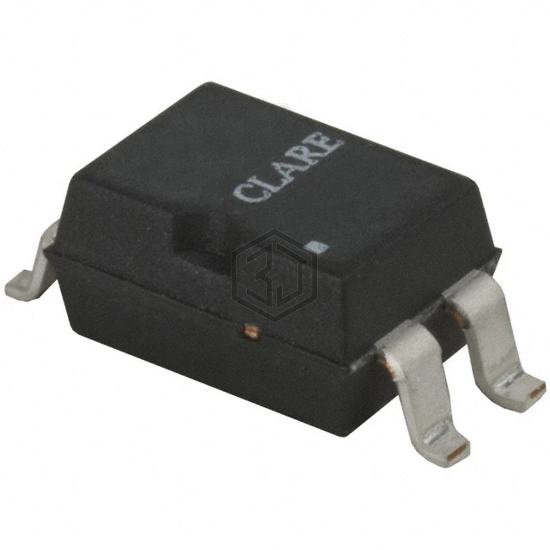

CPC1301GR is a Optoisolators - Transistor, Photovoltaic Output manufactured by IXYS Integrated Circuits Division. OPTOISOLTR 5KV DARLINGTON 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.
In Stock: 1,642
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 1000% @ 1mA |
| Current Transfer Ratio (Max) | 8000% @ 1mA |
| Turn On / Turn Off Time (Typ) | 1µs, 80µs |
| Rise / Fall Time (Typ) | 40µs, 2.6µs |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 350V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 1 mA |
| Vce Saturation (Max) | 1.2V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
Submit your RFQ for CPC1301GR and get a quote within 24 hours.
