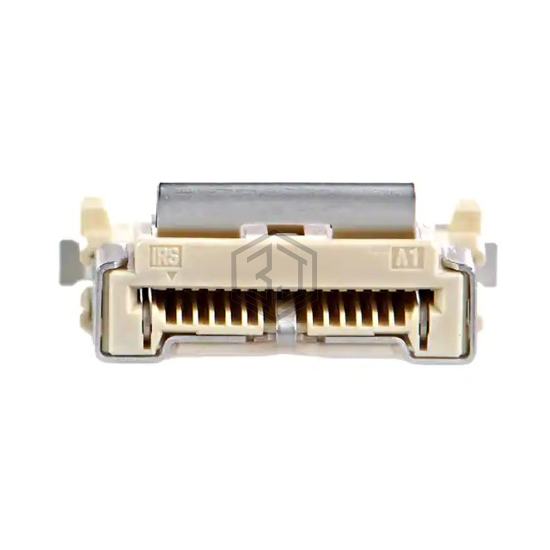

CONN FFC VERT .5MM 15POS
IMSA-11600S-15C-GFN4 is a FFC, FPC (Flat Flexible) Connectors manufactured by IRISO USA Inc.. CONN FFC VERT .5MM 15POS. Key specifications: mounting type Surface Mount, voltage rating 50V, housing material Liquid Crystal Polymer (LCP), termination Solder.
In Stock: 3,944
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 15 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.236" (6.00mm) |
| Locking Feature | - |
| Cable End Type | Notched |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for IMSA-11600S-15C-GFN4 and get a quote within 24 hours.
