SIDE VIEW / 0603 / 1.6 X 0.8 X 0

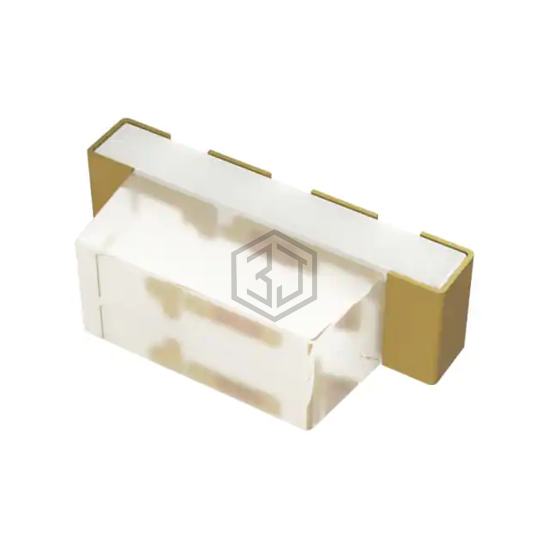

IN-S63TBS5R5G5B is a LED Indication - Discrete manufactured by Inolux. SIDE VIEW / 0603 / 1.6 X 0.8 X 0. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2.2V Red, 3V Green, 3V Blue, package / case 0603 (1608 Metric), color Red, Green, Blue (RGB).
In Stock: 9,197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 30mcd Red, 230mcd Green, 45mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.50mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3V Green, 3V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 625nm Red, 530nm Green, 473nm Blue |
| Wavelength - Peak | 622nm Red, 527nm Green, 470nm Blue |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.60mm |
Submit your RFQ for IN-S63TBS5R5G5B and get a quote within 24 hours.
