TRENCH >=100V PG-HSOG-8

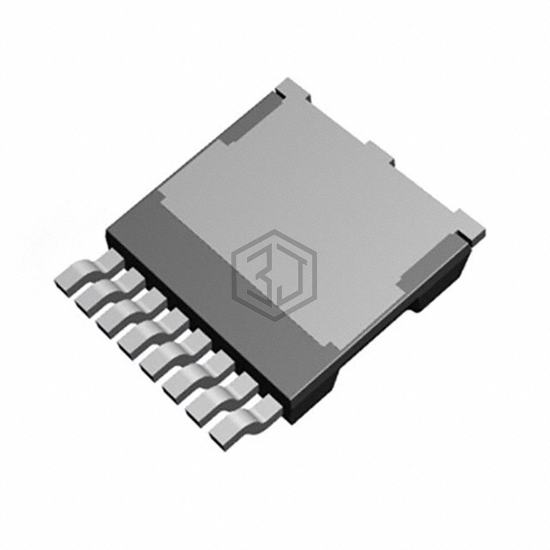

IPTG111N20NM3FDATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. TRENCH >=100V PG-HSOG-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSMD, Gull Wing.
In Stock: 1,795
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 10.8A (Ta), 108A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 11.1mOhm @ 96A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 267µA |
| Gate Charge (Qg) (Max) @ Vgs | 81 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7000 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-HSOG-8-1 |
| Package / Case | 8-PowerSMD, Gull Wing |
Submit your RFQ for IPTG111N20NM3FDATMA1 and get a quote within 24 hours.
