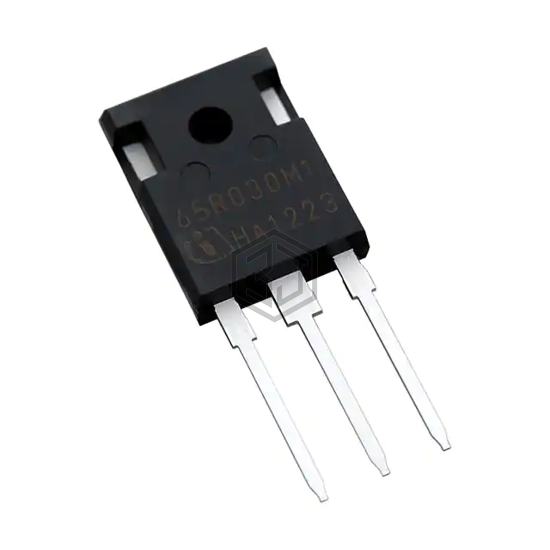

SILICON CARBIDE MOSFET, PG-TO247
IMW65R030M1HXKSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. SILICON CARBIDE MOSFET, PG-TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.
In Stock: 231
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 29.5A, 18V |
| Vgs(th) (Max) @ Id | 5.7V @ 8.8mA |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 18 V |
| Vgs (Max) | +20V, -2V |
| Input Capacitance (Ciss) (Max) @ Vds | 1643 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 197W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO247-3-41 |
| Package / Case | TO-247-3 |
Submit your RFQ for IMW65R030M1HXKSA1 and get a quote within 24 hours.
