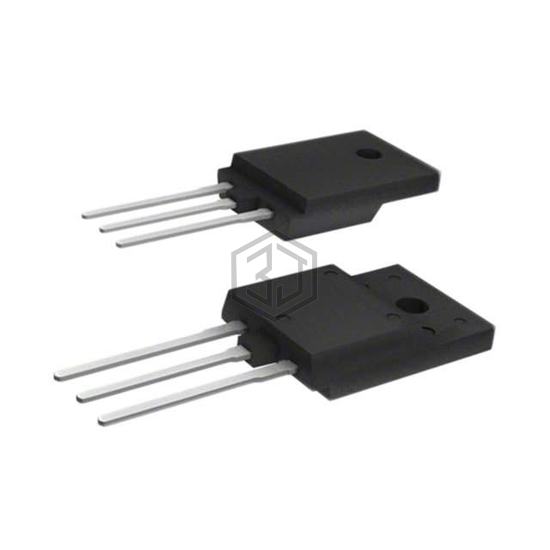

IGBT 650V 14A TO220-FP
IKA15N65F5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 650V 14A TO220-FP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 14 A.
In Stock: 348
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 14 A |
| Current - Collector Pulsed (Icm) | 45 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 15A |
| Power - Max | 33.3 W |
| Switching Energy | 130µJ (on), 40µJ (off) |
| Input Type | Standard |
| Gate Charge | 38 nC |
| Td (on/off) @ 25°C | 17ns/150ns |
| Test Condition | 400V, 7.5A, 39Ohm, 15V |
| Reverse Recovery Time (trr) | 50 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | PG-TO220-FP |
Submit your RFQ for IKA15N65F5XKSA1 and get a quote within 24 hours.
