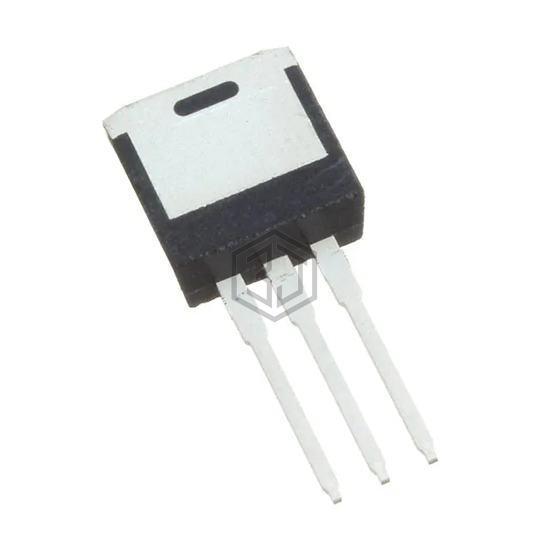

MOSFET N-CH 200V 14.5A TO262-3
BUZ31H3046XKSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 200V 14.5A TO262-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.
In Stock: 6,994
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 14.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 9A, 5V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1120 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 95W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO262-3-1 |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
Submit your RFQ for BUZ31H3046XKSA1 and get a quote within 24 hours.
