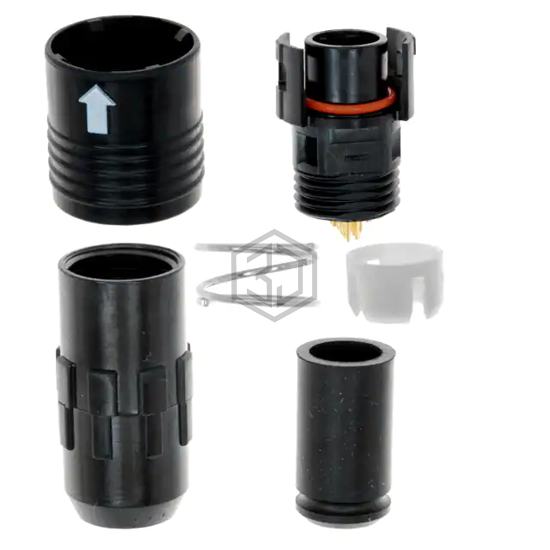

CONN PLUG MALE 12P GOLD SLDR CUP
HR30-8P-12P(71) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN PLUG MALE 12P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 30VAC, 42VDC, color Black.
In Stock: 1,371
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 12 (Power) |
| Shell Size - Insert | 8 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Strain Relief |
| Shielding | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | 30VAC, 42VDC |
| Cable Opening | 0.244" ~ 0.276" (6.20mm ~ 7.00mm) |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for HR30-8P-12P(71) and get a quote within 24 hours.
