CONN PLUG FMALE 12P SOLDER CUP

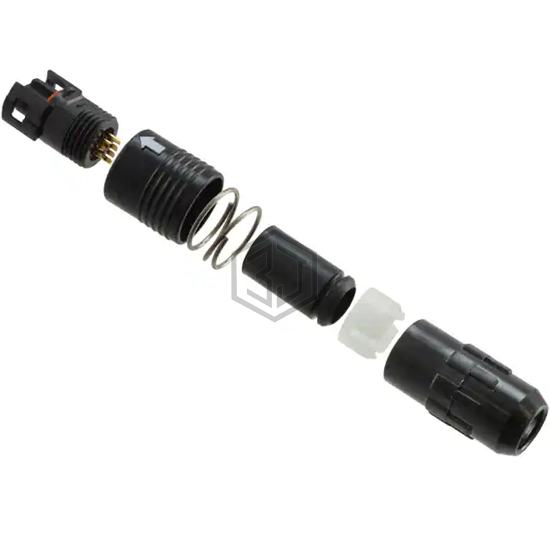

HR30-7P-12S(71) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN PLUG FMALE 12P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 30VAC, 42VDC, color Black.
In Stock: 261
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 12 (Power) |
| Shell Size - Insert | 7 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Strain Relief |
| Shielding | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | 30VAC, 42VDC |
| Cable Opening | 0.244" ~ 0.276" (6.20mm ~ 7.00mm) |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for HR30-7P-12S(71) and get a quote within 24 hours.
