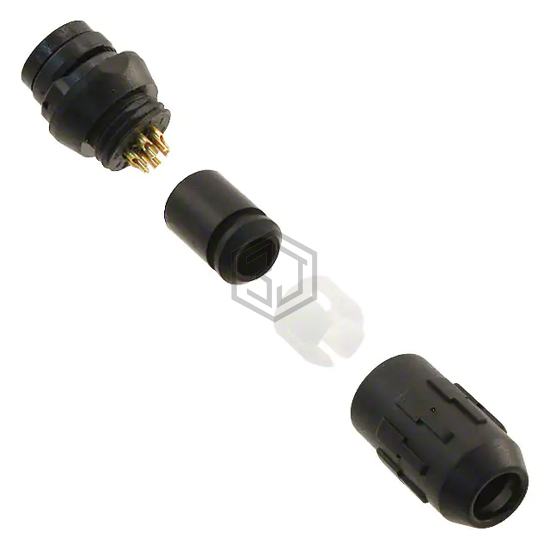

CONN JACK MALE 6P GOLD SLDR CUP
HR30-6JA-6P(71) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN JACK MALE 6P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 85°C, voltage rating 100VAC, 140VDC, color Black.
In Stock: 332
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack, Male Pins |
| Number of Positions | 6 (Power) |
| Shell Size - Insert | 6 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyphenylene Sulfide (PPS) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Strain Relief |
| Shielding | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | 100VAC, 140VDC |
| Cable Opening | 0.138" ~ 0.169" (3.50mm ~ 4.30mm) |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for HR30-6JA-6P(71) and get a quote within 24 hours.
