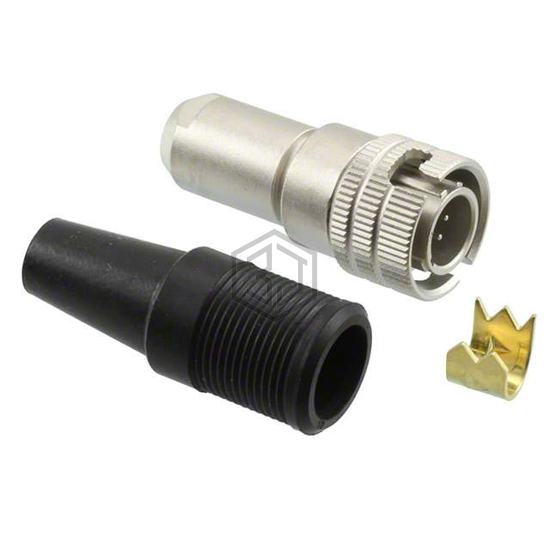

CONN PLUG MALE 6P SILV SLDR CUP
HR11-9BPB-6P(73) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN PLUG MALE 6P SILV SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -10°C ~ 60°C, voltage rating 100VAC, 140VDC, color Silver.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Connector Type | Plug, Male Pins |
| Number of Positions | 6 |
| Shell Size - Insert | 9 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Silver |
| Color | Silver |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | 2A |
| Voltage Rating | 100VAC, 140VDC |
| Cable Opening | 0.177" ~ 0.217" (4.50mm ~ 5.50mm) |
| Operating Temperature | -10°C ~ 60°C |
Submit your RFQ for HR11-9BPB-6P(73) and get a quote within 24 hours.
