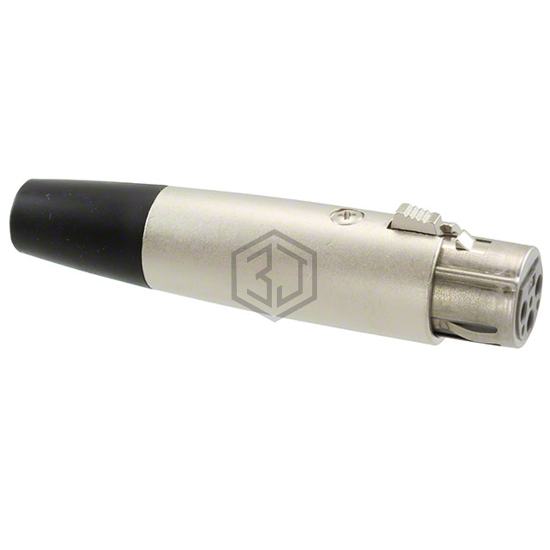

CONN PLUG FMALE 3P SOLDER EYELET
HA16PA-3S(71) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN PLUG FMALE 3P SOLDER EYELET. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 70°C, voltage rating 130VAC, 180VDC, color Black, Silver.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 3 |
| Shell Size - Insert | 16 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Fastening Type | Latch Lock |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shell Finish | - |
| Contact Finish - Mating | Silver |
| Color | Black, Silver |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 15A |
| Voltage Rating | 130VAC, 180VDC |
| Cable Opening | 0.480" (12.20mm) |
| Operating Temperature | -25°C ~ 70°C |
Submit your RFQ for HA16PA-3S(71) and get a quote within 24 hours.
