CONN PLUG FMALE 17P SOLDER CUP

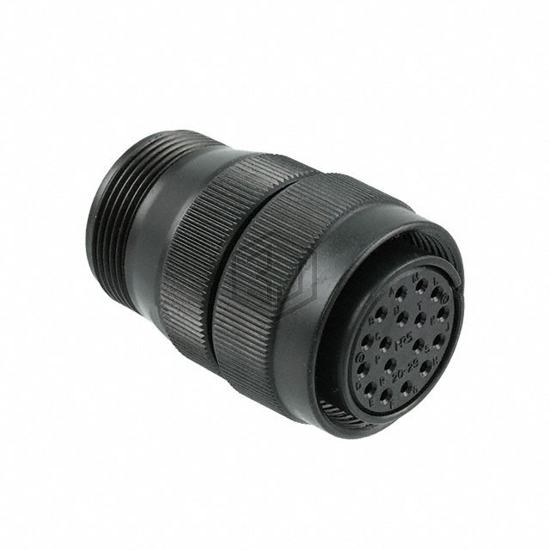

H/MS3106A20-29SW(77) is a Circular Connectors manufactured by Hirose Electric Co Ltd. CONN PLUG FMALE 17P SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 125°C, voltage rating 500VAC, 700VDC, color Black.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 17 |
| Shell Size - Insert | 20-29 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | W |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Black Chromate |
| Contact Finish - Mating | Silver |
| Color | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |
| Voltage Rating | 500VAC, 700VDC |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 125°C |
Submit your RFQ for H/MS3106A20-29SW(77) and get a quote within 24 hours.
