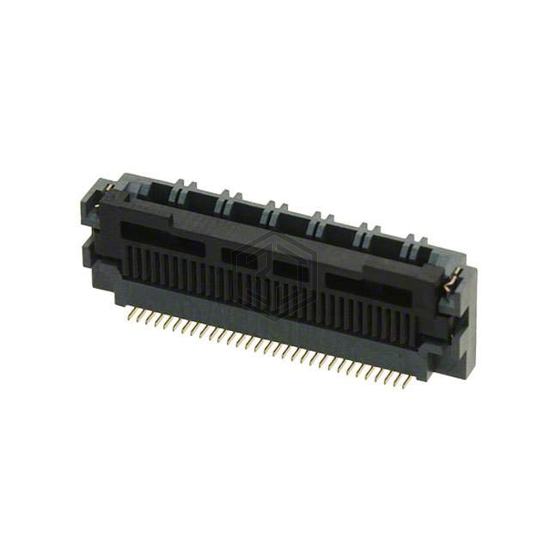

CONN FFC VERT 31POS 0.50MM SMD
FH48-31S-0.5SV is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. CONN FFC VERT 31POS 0.50MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP), Halogen Free.
In Stock: 6,393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 31 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.243" (6.18mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed |
| Contact Material | Phosphor Bronze |
| Contact Finish | - |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Features | Low Insertion Force (LIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FH48-31S-0.5SV and get a quote within 24 hours.
