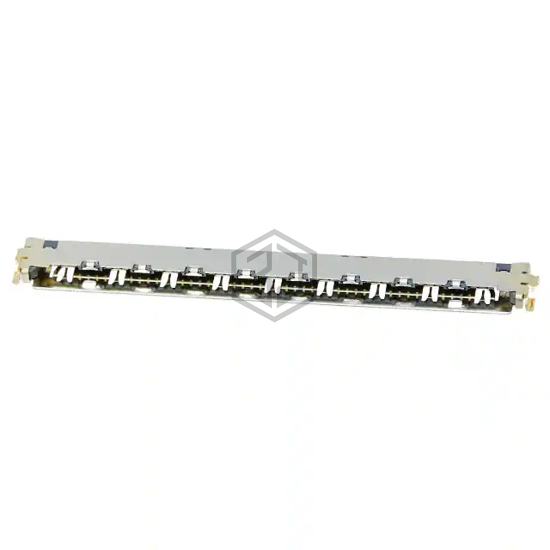

CONN RCPT 50P 0.016 GOLD SMD R/A
DF81-50S-0.4H(52) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Hirose Electric Co Ltd. CONN RCPT 50P 0.016 GOLD SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -35°C ~ 85°C, voltage rating 100V, current rating (amps) 0.3A.
In Stock: 1,041
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Center Strip Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.016" (0.40mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Insulation Color | Black |
| Insulation Height | 0.035" (0.90mm) |
| Contact Length - Post | - |
| Operating Temperature | -35°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Grounding Tab, Shielded |
| Current Rating (Amps) | 0.3A |
| Voltage Rating | 100V |
Submit your RFQ for DF81-50S-0.4H(52) and get a quote within 24 hours.
