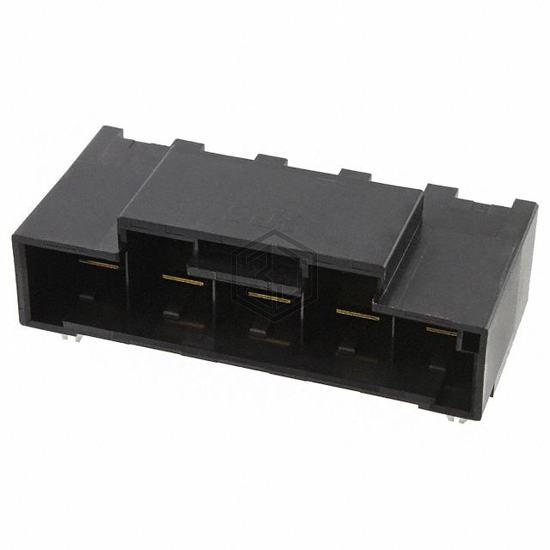

CONN HEADER R/A 5POS 10.16MM
DF60-5P-10.16DS(26) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER R/A 5POS 10.16MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 105°C, contact material Copper Alloy, current rating (amps) Varies by Wire Gauge.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.400" (10.16mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | - |
| Insulation Height | 0.683" (17.35mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | - |
Submit your RFQ for DF60-5P-10.16DS(26) and get a quote within 24 hours.
