CONN HEADER R/A 5POS 7.92MM

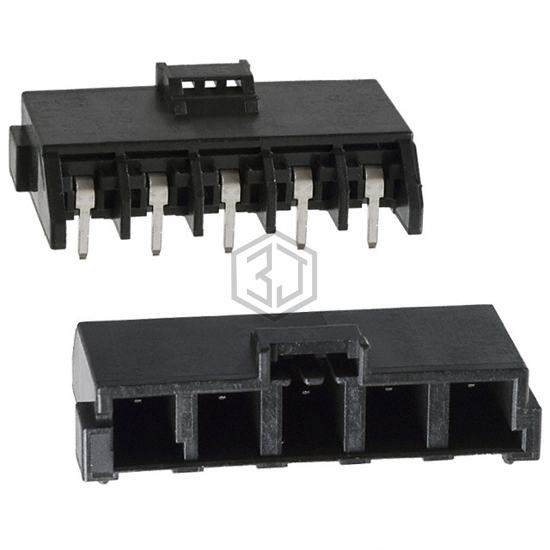

DF22R-5P-7.92DS(05) is a Rectangular Connectors - Headers, Male Pins manufactured by Hirose Electric Co Ltd. CONN HEADER R/A 5POS 7.92MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -35°C ~ 85°C, voltage rating 1000V, contact material Copper Alloy.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.312" (7.92mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.354" (9.00mm) |
| Contact Length - Post | 0.146" (3.70mm) |
| Overall Contact Length | - |
| Insulation Height | 0.480" (12.20mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin-Copper |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide |
| Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 22A |
| Voltage Rating | 1000V |
Submit your RFQ for DF22R-5P-7.92DS(05) and get a quote within 24 hours.
