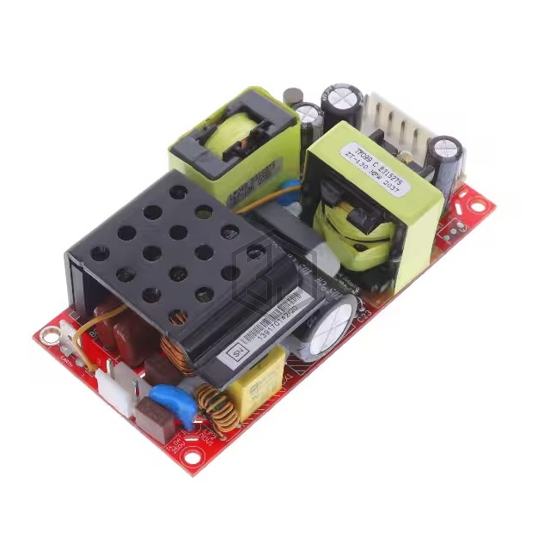

AC/DC CONVERTER 48V 225W
GTM962250P22548A-F is a AC DC Converters manufactured by GlobTek, Inc.. AC/DC CONVERTER 48V 225W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 80°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm).
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.69 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 225W |
| Applications | Household Appliances, ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 95% |
| Operating Temperature | -25°C ~ 80°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
| Approval Agency | CB, CE, cETLus, EAC, UkrSEPRO, VCCI |
| Standard Number | 60335-1; 60601-1; 60950-1; 62368-1 |
Submit your RFQ for GTM962250P22548A-F and get a quote within 24 hours.
