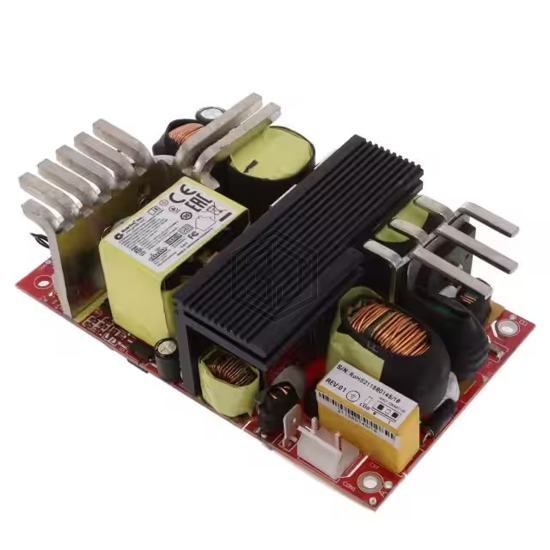

AC/DC CONVERTER 24V 150W
GTM91110P15024FSIM(R is a AC DC Converters manufactured by GlobTek, Inc.. AC/DC CONVERTER 24V 150W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 50°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm).
In Stock: 53
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 6.25 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 150W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 90% |
| Operating Temperature | -10°C ~ 50°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) |
| Approval Agency | CB, CE, cETLus, EAC, FCC, SIQ, UkrSEPRO, VCCI |
| Standard Number | 60601-1-11; 60601-1-2; 60950-1 |
