DC-DC

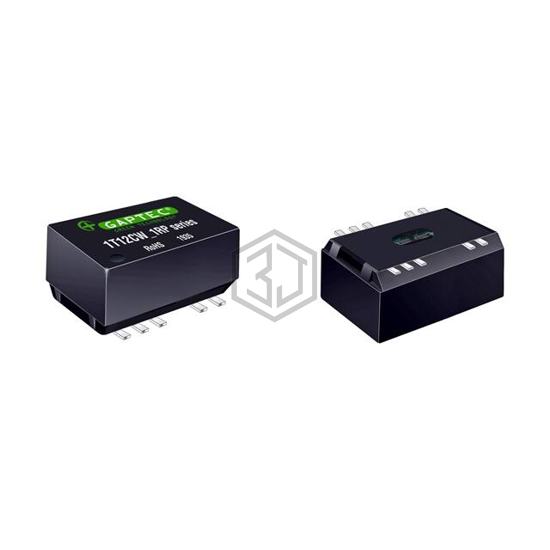

1T12CW_4824S1.5RP is a DC DC Converters manufactured by GAPTEC Electronic. DC-DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (With Derating), package / case 12-SMD Module, 10 Leads, current - output (max) 40mA.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 65V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40mA |
| Power (Watts) | 960 mW |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 72% |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD Module, 10 Leads |
| Size / Dimension | 0.60" L x 0.43" W x 0.28" H (15.2mm x 10.9mm x 7.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for 1T12CW_4824S1.5RP and get a quote within 24 hours.
