DC-DC

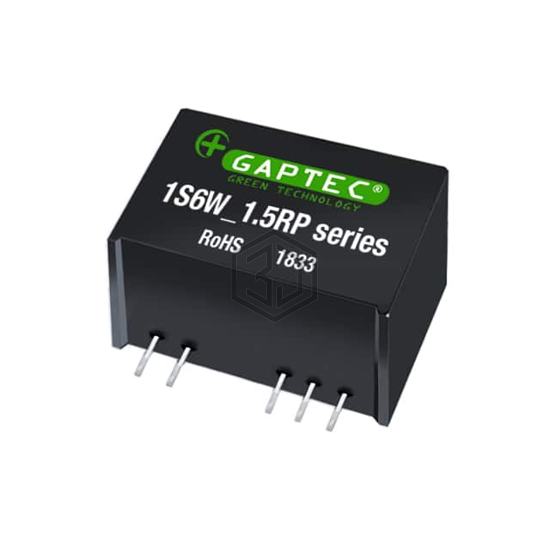

1S6W_2424S1.5RP is a DC DC Converters manufactured by GAPTEC Electronic. DC-DC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 6-SIP Module, 4 Leads, current - output (max) 42mA.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 42mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 4 Leads |
| Size / Dimension | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
Submit your RFQ for 1S6W_2424S1.5RP and get a quote within 24 hours.
