DC DC CONVERTER

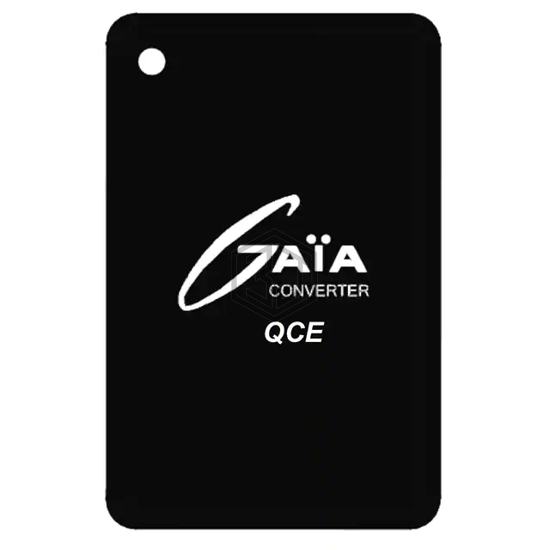

MGDTK10ICE is a DC DC Converters manufactured by Gaia Converter. DC DC CONVERTER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 95°C, package / case 8-DIP Module, 6 Leads, current - output (max) 1A, 200mA, 200mA.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A, 200mA, 200mA |
| Power (Watts) | 10 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 95°C |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 6 Leads |
| Size / Dimension | 1.57" L x 1.02" W x 0.32" H (40.0mm x 26.0mm x 8.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for MGDTK10ICE and get a quote within 24 hours.
