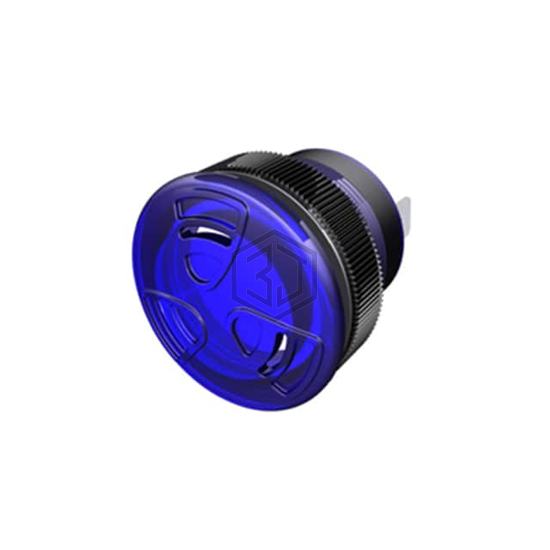

BUZZER 33.02MM PNL MNT
TUHT-88B-930-Q is a Alarms, Buzzers, and Sirens manufactured by Floyd Bell Inc. BUZZER 33.02MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 65°C, current - supply 65 ~ 125mA, size / dimension 1.300" Dia (33.02mm).
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 9 ~ 30V |
| Frequency | 3kHz |
| Technology | - |
| Operating Mode | Staccato Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 103dB @ 30V, 61cm |
| Current - Supply | 65 ~ 125mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 65°C |
| Approval Agency | UL, UR |
| Ratings | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount |
| Termination | Quick Connect Tab - 0.250" (6.35mm) |
| Size / Dimension | 1.300" Dia (33.02mm) |
| Height - Seated (Max) | 1.180" (29.97mm) |
Submit your RFQ for TUHT-88B-930-Q and get a quote within 24 hours.
