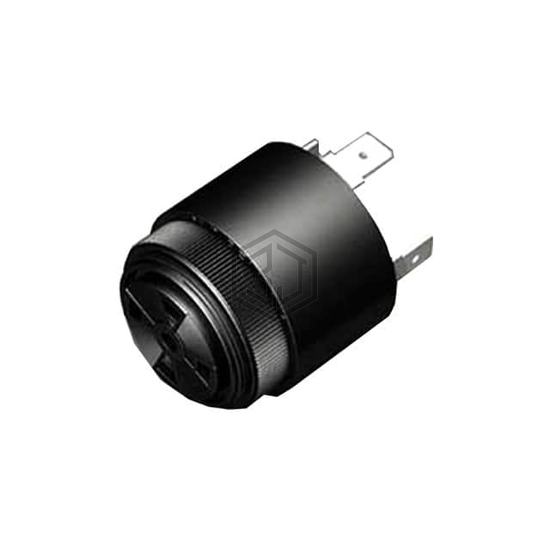

MB-09-948-Q(U)D - Floyd Bell Inc - Alarms, Buzzers, and Sirens

MB-09-948-Q(U)D

Floyd Bell Inc

BUZZER PIEZO 35.8MM PNL MNT

MB-09-948-Q(U)D is a Alarms, Buzzers, and Sirens manufactured by Floyd Bell Inc. BUZZER PIEZO 35.8MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 65°C, current - supply 5 ~ 20mA, size / dimension 1.409" Dia (35.80mm).

In Stock: 1,000

Product Attributes

AttributeValue
Product StatusActive
Driver Circuitry-
Input TypeDC
Voltage - Rated-
Voltage Range9 ~ 48V
Frequency2.9kHz
TechnologyPiezo
Operating ModePulse, Fast
Duration-
Sound Pressure Level (SPL)95dB @ 48V, 61cm
Current - Supply5 ~ 20mA
Port LocationTop
Operating Temperature-20°C ~ 65°C
Approval Agency-
Ratings-
Ingress Protection-
Mounting TypePanel Mount
TerminationQuick Connect Tab - 0.250" (6.35mm)
Size / Dimension1.409" Dia (35.80mm)
Height - Seated (Max)1.380" (35.05mm)

Frequently Asked Questions

MB-09-948-Q(U)D is a Alarms, Buzzers, and Sirens manufactured by Floyd Bell Inc. BUZZER PIEZO 35.8MM PNL MNT

The mounting type of MB-09-948-Q(U)D is Panel Mount.

The operating temperature range of MB-09-948-Q(U)D is -20°C ~ 65°C.

The current rating of MB-09-948-Q(U)D is 5 ~ 20mA.
