MOTION CONTROL ELECTRONIC

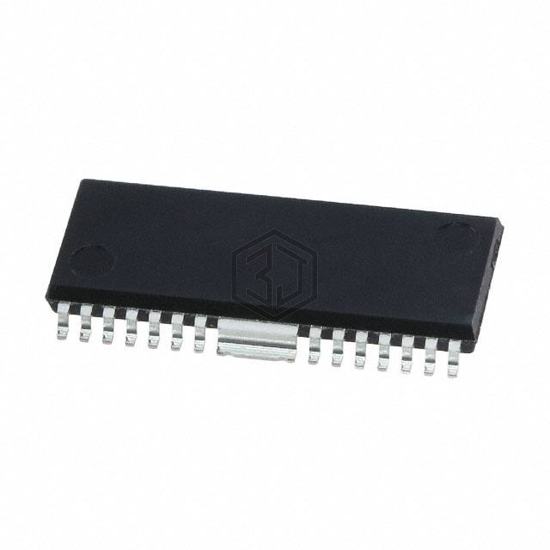

LV8771VH-TLM-H is a PMIC - Motor Drivers, Controllers manufactured by Fairchild Semiconductor. MOTION CONTROL ELECTRONIC. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C (TA), voltage - supply 0V ~ 5.5V, package / case 28-LSOP (0.220", 5.60mm Width) + 2 Heat Tabs.
In Stock: 1,741
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Bi-CMOS |
| Step Resolution | 1, 1/2, 1/4 |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 0V ~ 5.5V |
| Voltage - Load | 9V ~ 32V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-LSOP (0.220", 5.60mm Width) + 2 Heat Tabs |
| Supplier Device Package | 28-HSOP |
LV8771VH-TLM-H is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LV8734V-TLM-H | Sanyo | STEPPER MOTOR DRIVER, PWM, CONST | 100% | View |
| DRV10974PWPR | Texas Instruments | IC MTR DRV MULTI 4.4-18V 16HSSOP | 100% | View |
| TB67S158FTG,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER UNIPOLAR 48WQFN | 97% | View |
| TB6569FTG,8,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER 10V-45V 32VQFN | 97% | View |
| DRV8821DCA | Texas Instruments | IC MTR DRV BIPOLR 8-32V 48HTSSOP | 97% | View |
| TB6642FG,8,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER 10V-45V 16HSOP | 97% | View |
Submit your RFQ for LV8771VH-TLM-H and get a quote within 24 hours.
