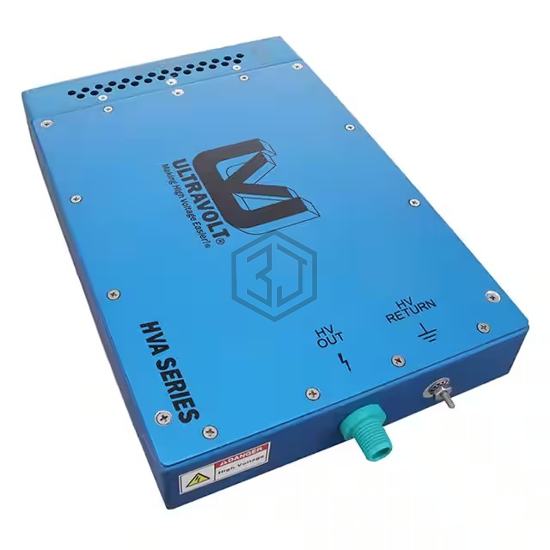

DC/DC CONVERTER 15000V 1.5W
15HVA24-BP1.5-F-25PPM is a DC DC Converters manufactured by Advanced Energy. DC/DC CONVERTER 15000V 1.5W. Key specifications: mounting type Chassis Mount, operating temperature 10°C ~ 45°C, current - output (max) 100µA, size / dimension 9.75" L x 6.50" W x 1.50" H (247.7mm x 165.1mm x 38.1mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 15000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100µA |
| Power (Watts) | 1.5W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | 10°C ~ 45°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 9.75" L x 6.50" W x 1.50" H (247.7mm x 165.1mm x 38.1mm) |
| Approval Agency | - |
| Standard Number | - |
