FIXED IND 1UH 580MA 550 MOHM SMD

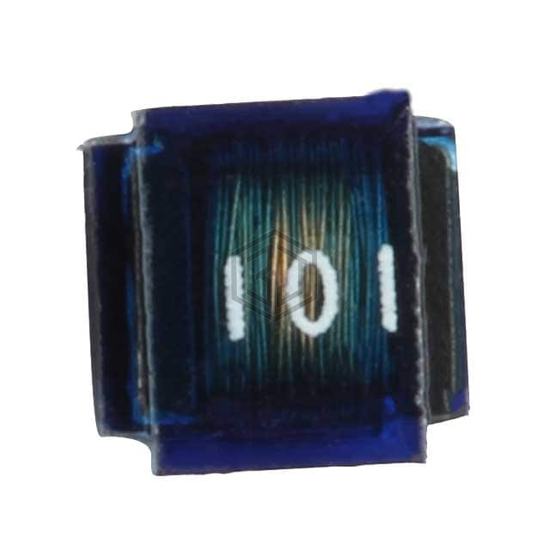

WCL2520-1R0-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 1UH 580MA 550 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1008 (2520 Metric), current rating (amps) 580 mA.
In Stock: 3,527
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 1 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 580 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 550mOhm Max |
| Q @ Freq | 12 @ 25.2MHz |
| Frequency - Self Resonant | 300MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
Submit your RFQ for WCL2520-1R0-R and get a quote within 24 hours.
