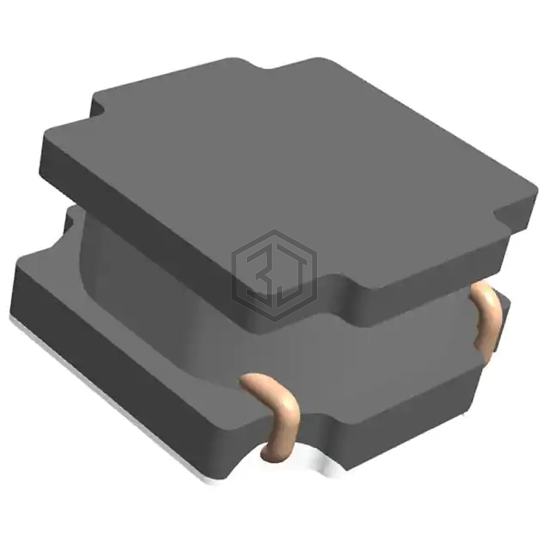

IND SMD POWER 1.5UH 8.0A
SDCHA1V8040-1R5-R is a Fixed Inductors manufactured by Eaton - Electronics Division. IND SMD POWER 1.5UH 8.0A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 8 A.
In Stock: 750
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | 11.5A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 10mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 66MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for SDCHA1V8040-1R5-R and get a quote within 24 hours.
