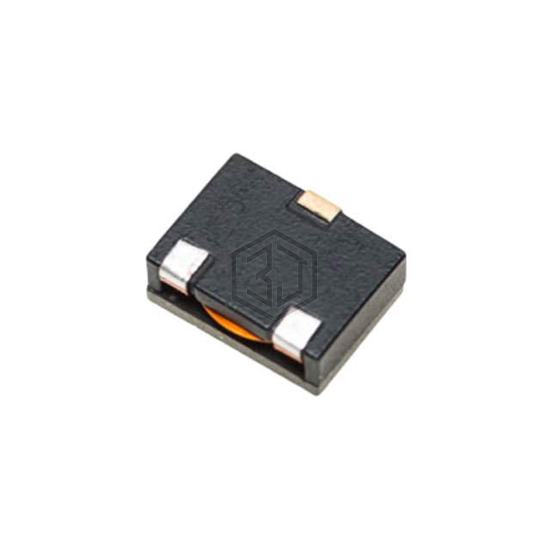

FIXED IND 480NH 16A 3.15MOHM SMD
HCV1206-R48-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 480NH 16A 3.15MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 16 A.
In Stock: 4,466
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 480 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 16 A |
| Current - Saturation (Isat) | 37A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.15mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.480" L x 0.386" W (12.20mm x 9.80mm) |
| Height - Seated (Max) | 0.201" (5.10mm) |
Submit your RFQ for HCV1206-R48-R and get a quote within 24 hours.
