FIXED IND 600NH 14A 4.5 MOHM SMD

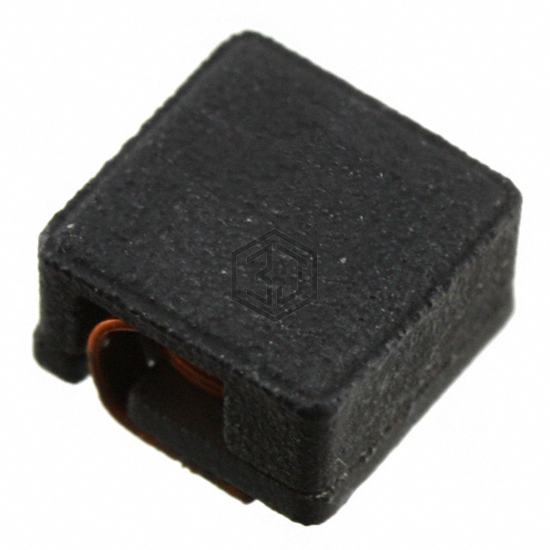

HCP0704-R60-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 600NH 14A 4.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, current rating (amps) 14 A.
In Stock: 1,106
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 600 nH |
| Tolerance | ±25% |
| Current Rating (Amps) | 14 A |
| Current - Saturation (Isat) | 21A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for HCP0704-R60-R and get a quote within 24 hours.
