FIXED IND 470NH 12A 7.15 MOHM

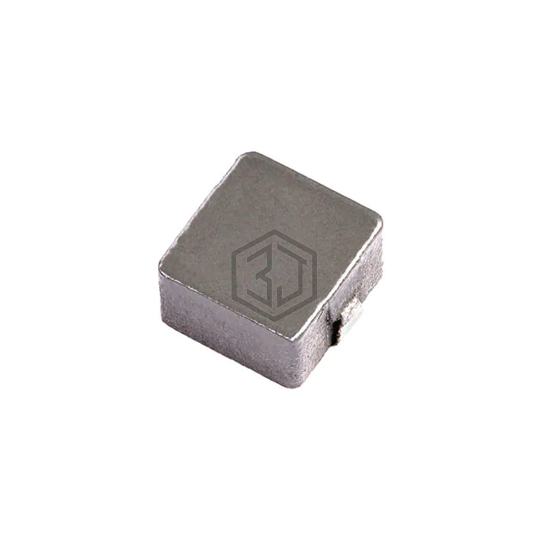

HCMA0503-R47-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 470NH 12A 7.15 MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 12 A.
In Stock: 1,943
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | 11.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.203" L x 0.201" W (5.15mm x 5.10mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for HCMA0503-R47-R and get a quote within 24 hours.
