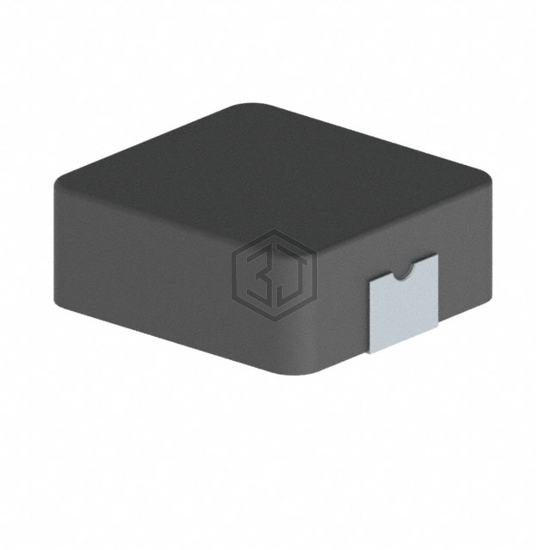

FIXED IND 330NH 35A 0.92MOHM SMD
HCM1A1305-R33-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 330NH 35A 0.92MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 35 A.
In Stock: 79
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 35 A |
| Current - Saturation (Isat) | 44A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.92mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.524" L x 0.480" W (13.30mm x 12.20mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for HCM1A1305-R33-R and get a quote within 24 hours.
