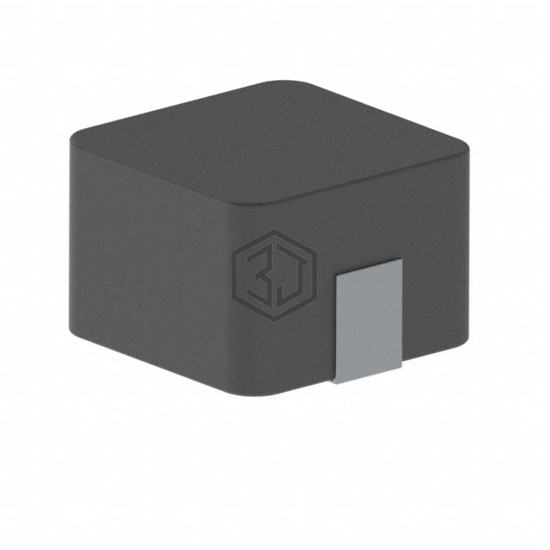

FIXED IND 47UH 1.8A 160MOHM SMD
HCM1A0805-470-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 47UH 1.8A 160MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 1.8 A.
In Stock: 9,376
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 3.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 160mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.319" L x 0.315" W (8.10mm x 8.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
Submit your RFQ for HCM1A0805-470-R and get a quote within 24 hours.
