FIXED IND 680NH 21A 3.4 MOHM SMD

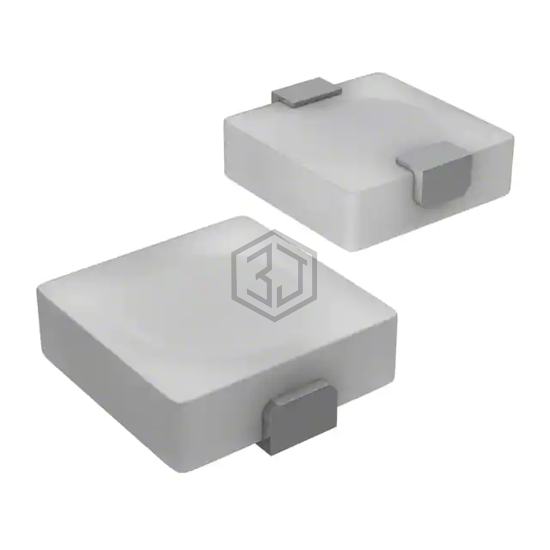

HCM1103-R68-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 680NH 21A 3.4 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 21 A.
In Stock: 769
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 21 A |
| Current - Saturation (Isat) | 23A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.437" L x 0.394" W (11.10mm x 10.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for HCM1103-R68-R and get a quote within 24 hours.
