FIXED IND 200NH 22.2A 2.31 MOHM

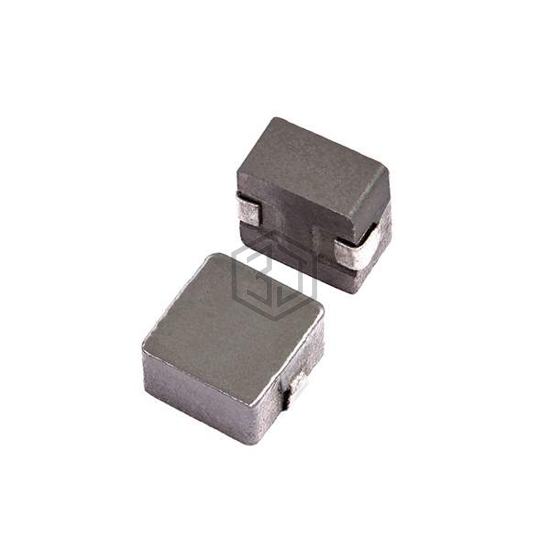

HCM0503-R20-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 200NH 22.2A 2.31 MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 2020 (5050 Metric), current rating (amps) 22.2 A.
In Stock: 5,555
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 200 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 22.2 A |
| Current - Saturation (Isat) | 21A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.31mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2020 (5050 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.203" L x 0.201" W (5.15mm x 5.10mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for HCM0503-R20-R and get a quote within 24 hours.
