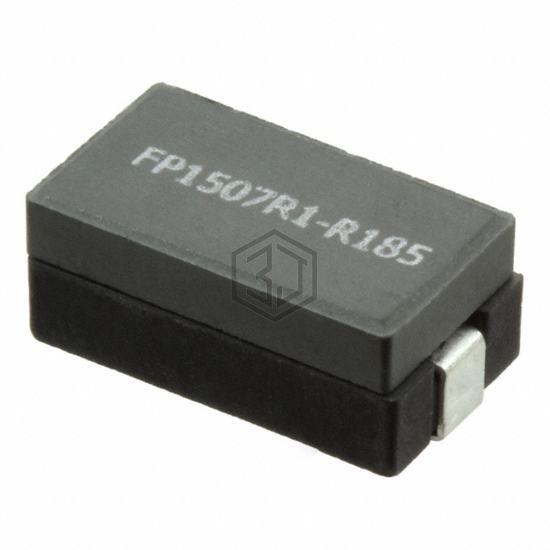

FIXED IND 185NH 45A 0.52MOHM SMD
FP1507R1-R185-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 185NH 45A 0.52MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 45 A.
In Stock: 1,951
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 185 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 45 A |
| Current - Saturation (Isat) | 40A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.52mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 0.575" L x 0.335" W (14.60mm x 8.50mm) |
| Height - Seated (Max) | 0.264" (6.70mm) |
Submit your RFQ for FP1507R1-R185-R and get a quote within 24 hours.
