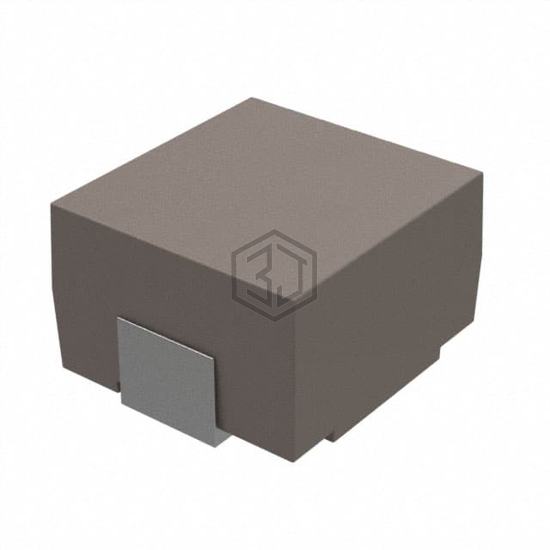

FIXED IND 440NH 57A 0.32MOHM SMD
FP1308R1-R44-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 440NH 57A 0.32MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 57 A.
In Stock: 400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 440 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 57 A |
| Current - Saturation (Isat) | 37A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.32mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.528" L x 0.500" W (13.40mm x 12.70mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for FP1308R1-R44-R and get a quote within 24 hours.
