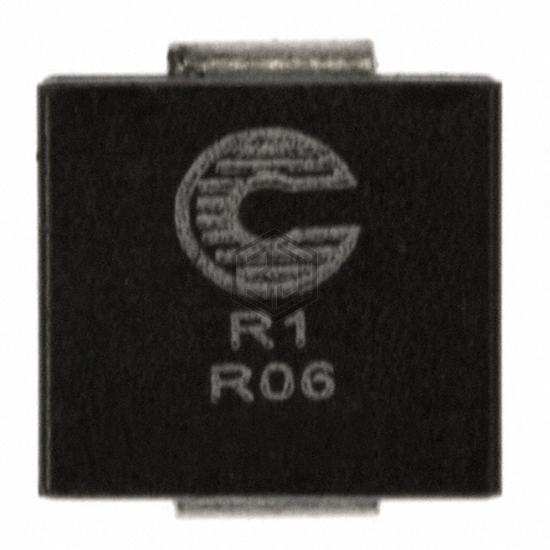

FIXED IND 58NH 65A 0.17 MOHM SMD
FP0805R1-R06-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 58NH 65A 0.17 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 65 A.
In Stock: 1,742
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 58 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 65 A |
| Current - Saturation (Isat) | 83A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.17mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.300" L x 0.295" W (7.62mm x 7.49mm) |
| Height - Seated (Max) | 0.195" (4.96mm) |
Submit your RFQ for FP0805R1-R06-R and get a quote within 24 hours.
