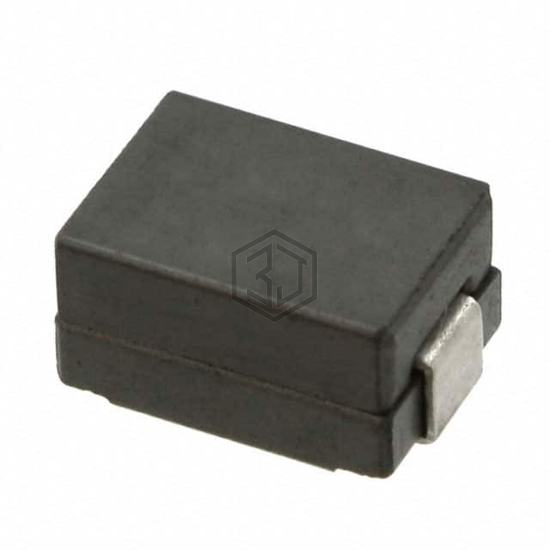

FIXED IND 22NH 40A 0.32MOHM SMD
FP0404R1-R022-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 22NH 40A 0.32MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 40 A.
In Stock: 11,331
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 40 A |
| Current - Saturation (Isat) | 40A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.32mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
