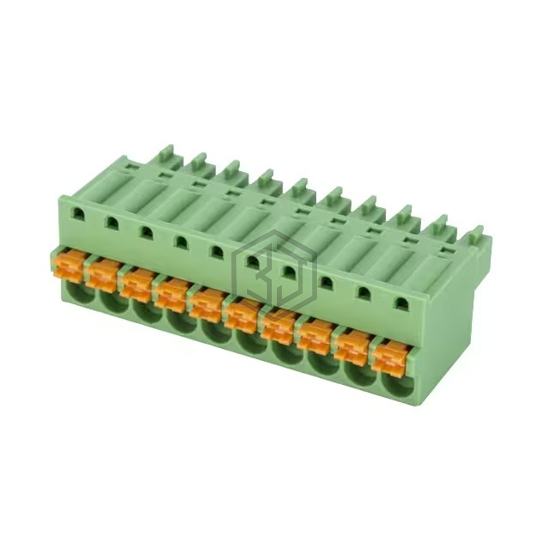

TERM BLK 10POS 3.81MM PID PLG
ESC381V-10P is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Dinkle Corporation, USA. TERM BLK 10POS 3.81MM PID PLG. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 120°C, color Green, termination style Screwless - Leg Spring, Push-In Spring.
In Stock: 695
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 10 |
| Positions Per Level | 10 |
| Number of Levels | 1 |
| Pitch | 0.150" (3.81mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 10A |
| Voltage - IEC | 500 V |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 120°C |
| Contact Mating Finish | Tin |
| Features | - |
Submit your RFQ for ESC381V-10P and get a quote within 24 hours.
