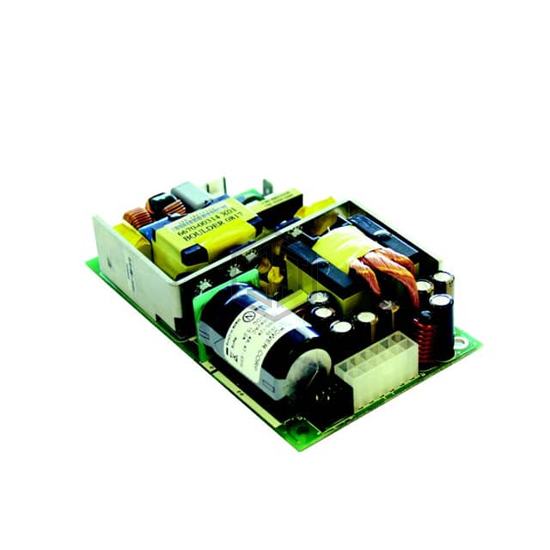

AC/DC CONVERTER 12V 199W
HD365-112 is a AC DC Converters manufactured by Digital Power Corporation. AC/DC CONVERTER 12V 199W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 170 ~ 370 VDC, size / dimension 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm).
In Stock: 498
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 170 ~ 370 VDC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 16.6 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 199W (365W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
| Approval Agency | cCSAus, CE, NEMKO |
| Standard Number | 60601-1; 60950-1 |
Submit your RFQ for HD365-112 and get a quote within 24 hours.
