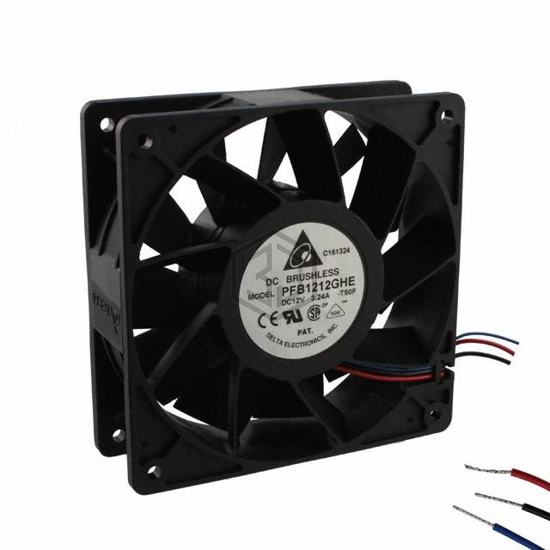

FAN AXIAL 120X38MM 12VDC WIRE
PFB1212GHE-T50F is a DC Brushless Fans (BLDC) manufactured by Delta Electronics. FAN AXIAL 120X38MM 12VDC WIRE. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 12VDC, size / dimension Square - 120mm L x 120mm H, termination 3 Wire Leads.
In Stock: 53
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 217.8 CFM (6.10m³/min) |
| Static Pressure | 1.075 in H2O (267.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 64.0dB(A) |
| Power (Watts) | 32.4 W |
| RPM | 4800 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.838 lb (380.11 g) |
Submit your RFQ for PFB1212GHE-T50F and get a quote within 24 hours.
