FIXED IND 4.7UH 4.4A 59MOHM SMD

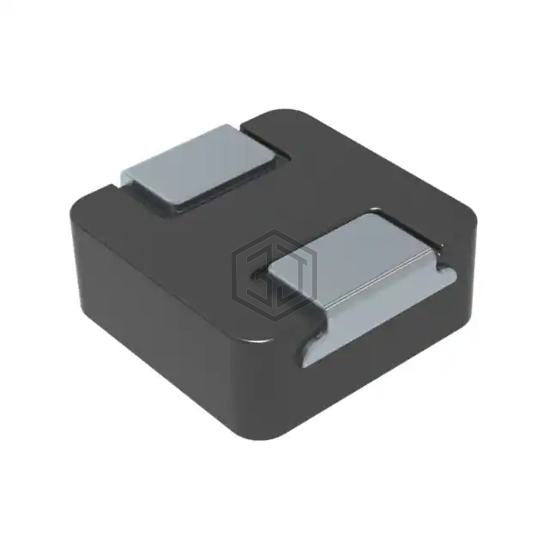

VCMT053T-4R7MN5 is a Fixed Inductors manufactured by Delta Electronics/Cyntec. FIXED IND 4.7UH 4.4A 59MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 4.4 A.
In Stock: 772
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.4 A |
| Current - Saturation (Isat) | 3.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 59mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.215" L x 0.207" W (5.45mm x 5.25mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for VCMT053T-4R7MN5 and get a quote within 24 hours.
